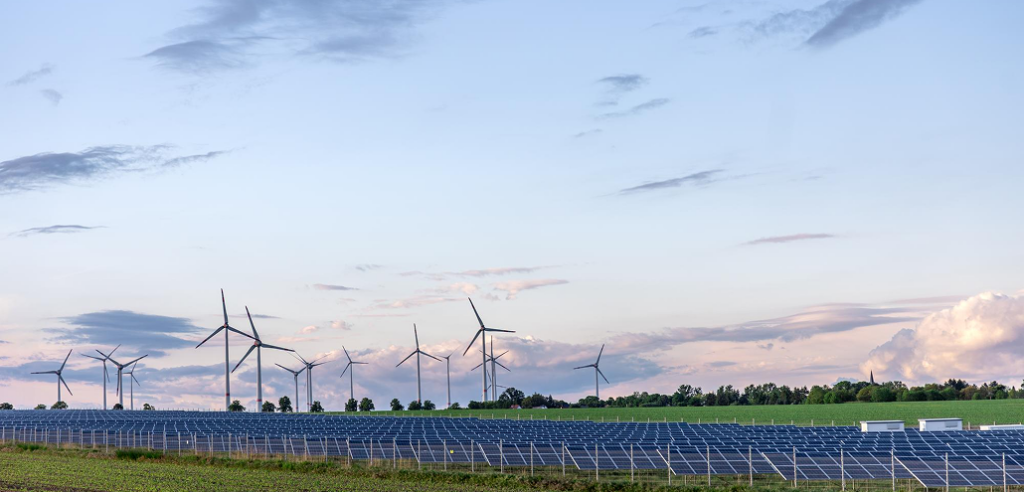

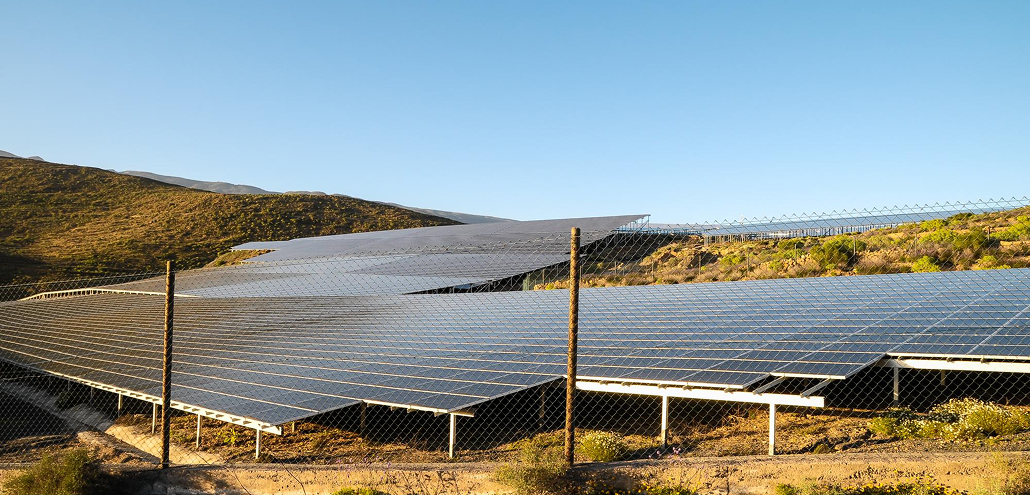

When a ground mount solar system fails in a high wind event, it almost never fails at the panel. It fails at a connection, a foundation, or a structural member that was under-specified for the site’s wind load. The panel just happens to be the part that ends up in the neighbour’s paddock. For installers, a wind failure is the worst kind of call-back: expensive, reputation-damaging, and often uninsured if the system wasn’t certified correctly.
The good news is that wind failures are predictable. They happen at a small number of critical points, and every one of them can be designed against. This guide walks through exactly where ground mount systems fail under wind load, why those points fail, and how to specify and design a system that holds up in Australian wind regions, including the cyclonic zones where the margin for error is smallest.
Key takeaway
- Wind failures in ground mount systems concentrate at five critical points: the foundation, the posts, the post-to-rail connections, the rails, and the module clamps.
- Wind uplift, not downward pressure, is the force that destroys most systems. At typical tilt angles, uplift forces can be two to four times the structural dead load.
- Under-specified foundations are the most common and most catastrophic failure: posts heave out of the ground and the whole row loses its geometry.
- Australia’s wind regions (AS/NZS 1170.2) range from Region A to cyclonic Regions C and D, and cyclonic zones require site-specific engineering certification, not generic drawings.
- A well-designed ground mount solar structure engineers for the load path, from the module clamp all the way down to the foundation, with no weak link.

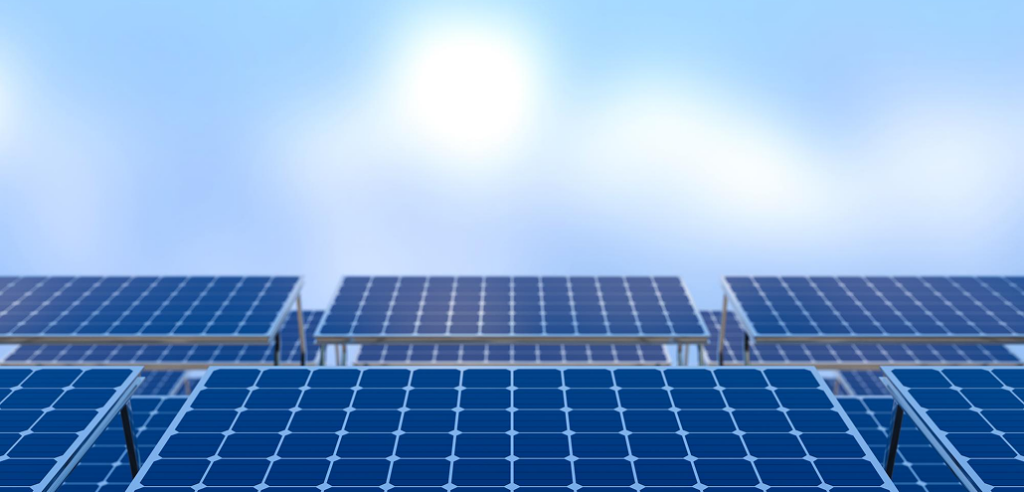

The forces at work: why wind, not weight, is the enemy
Solar arrays are effectively sails. A ground mount system holding ground mounted solar panels presents a large, flat surface to the wind, and that surface generates three distinct forces: drag (pushing the array sideways), overturning (rotating it backward or forward), and uplift (lifting it off its foundations). Of these three, uplift is the one that destroys systems.
Here’s the counterintuitive part. At the tilt angles used across most of Australia, wind uplift forces can reach two to four times the structural dead load the system was designed to carry in compression. The panels aren’t being pushed down onto their supports, they’re being pulled up and off them. A system engineered only for the weight it carries, without accounting for the uplift it experiences, is a system waiting to fail. This is why a fixed tilt ground mount has to be engineered around the worst-case wind uplift for its specific site, not just the dead load of its own components.

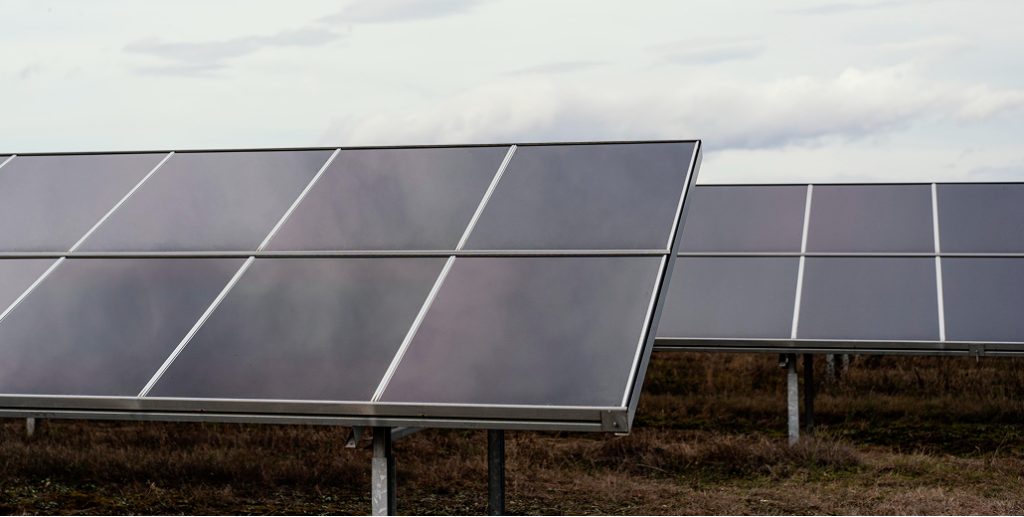

The five critical failure points

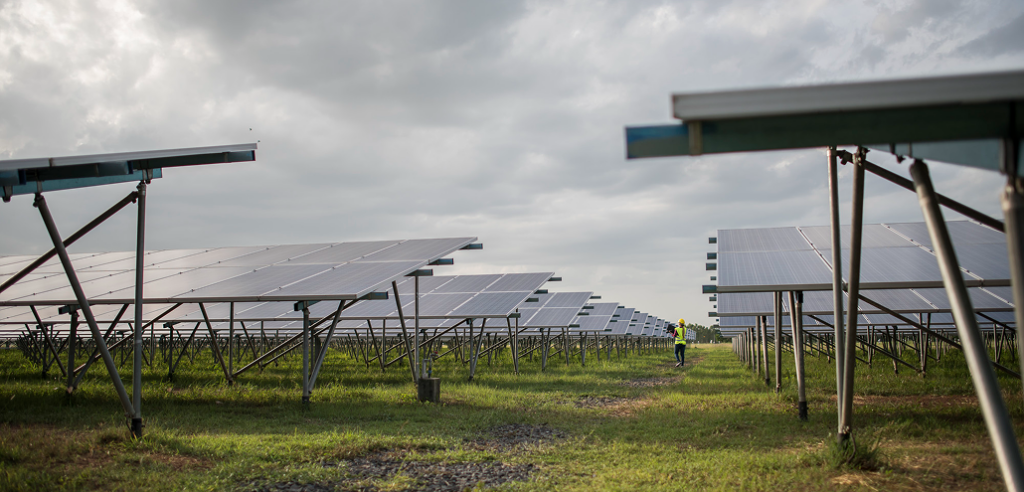

Wind failure follows the load path. The force starts at the panel surface and travels down through the structure into the ground, and it will find the weakest link along the way. Understanding the anatomy of a ground mount solar racking system helps you see where those links are. Here are the five points where systems fail, in the order the load travels.
1. The foundation (the most catastrophic failure)
The foundation is where wind uplift is ultimately resisted, and where the most destructive failures happen. When uplift exceeds the holding capacity of the foundation, the posts literally heave out of the ground, destroying the geometry of the entire row. In sandy or saturated soils, sustained uplift can overcome the skin friction of driven piles or the dead weight of concrete ballast.
The engineering that prevents this is specific. Under AS/NZS 1170.2 wind parameters, a standard utility ground mount foundation often needs an ultimate uplift resistance of 25 to 35 kN per pile, verified on site through static pull-out testing. This is why ground mount solar foundations can’t be specified from a generic table. The right foundation type and depth depend entirely on the site’s soil and wind load. Get a geotechnical report, match the foundation to the soil, and verify the uplift resistance. Skipping this step is the single most common cause of catastrophic wind failure.
2. The posts (upright supports)
The posts carry the load from the array down to the foundation. Under wind, they experience bending as well as compression and tension. An under-sized post, or one made from material that corrodes and loses section over time, can buckle or snap under a wind load it should have handled. This is where material quality matters as much as dimensions. A post that’s structurally adequate on day one but corroding at the base will fail years earlier than its design life in coastal or humid conditions.
3. The post-to-rail connections
Connections are where bending moments concentrate. Wind uplift creates bending moments at the post-to-rail connections, and a connection that relies on too few bolts, or bolts at the wrong torque, becomes a hinge point. Multi-bolt connections that loosen under repeated wind cycling are a common long-term failure mode. Every connection in the load path needs to be engineered to transfer the force through, not become the point where the structure articulates and fails.
4. The rails
Rails carry the modules and span between the supports. The critical design parameter is span: rails that span too far deflect excessively under wind or snow load, which stresses the modules and can crack them. There’s a genuine engineering tension here: greater spans reduce the number of posts and foundations (cutting cost and install time), but the rail itself has to be strong enough to carry that greater span without excessive deflection. A rail engineered for greater spans without sacrificing stiffness is the mark of a well-designed system.
5. The module clamps
The clamp is the last link in the chain and often the weakest. If wind uplift exceeds the tensile strength of the clamp, it fractures and ejects the module from the array. A clamp that grips too little of the module frame, or is made from a material that fatigues, becomes the point where the panel separates from an otherwise intact structure. Correct clamp selection and torque is what keeps the module attached when the wind is trying hardest to remove it.
Nova’s field notes: we designed for the load path, not just the load
When we engineered the Nova Ground Mount System, we started from the failure points, not the features. The rear brace support is designed specifically to transfer wind uplift and overturning loads through the structure into the foundations, with pre-fabricated elongated holes that let the installer set the geometry precisely rather than approximating it on site. The single-bolt rail clamp isn’t just about install speed, it’s a cleaner, more repeatable connection than a multi-bolt fixing that can be torqued inconsistently.
We offer both ground screw and concrete ballast foundations because the right answer for wind uplift depends entirely on the site’s soil, and a system that only offers one foundation type forces installers to compromise on the most critical point in the whole structure. The point isn’t that our system is unbreakable. It’s that we thought about where systems break and engineered those points deliberately.
Australia’s wind regions and what they demand
Every ground mount solar system in Australia has to be designed for its site’s wind region under AS/NZS 1170.2. The standard divides the country into four wind regions, and the difference between them is enormous, a cyclonic Region D site faces nearly double the design wind speed of a Region A site.
| Wind region | Design wind speed | Where | Certification requirement |
|---|---|---|---|
| Region A | ~43 m/s | Most of Australia (temperate south and inland) | Standard engineering certification |
| Region B | ~52 m/s | Some coastal and inland areas (e.g. parts of SE QLD, northern NSW) | Standard engineering certification |
| Region C (cyclonic) | ~64 m/s | Northern coastal areas, up to ~100 km inland | Site-specific certification required |
| Region D (severe cyclonic) | ~79 m/s | Most severe zone, WA coast between Carnarvon and Pardoo | Site-specific certification required |
The critical point for installers is certification. Regions C and D require site-specific engineering certification, a generic Region A or B layout drawing cannot be submitted to a council in cyclone territory. In most states the engineering calculations must be signed by a registered engineer. Terrain category, topography (hills and ridges accelerate wind), and shielding from surrounding structures all further modify the site wind speed. Two projects in the same wind region can have very different structural requirements once these factors are applied.
How to specify against wind failure
If wind failures are predictable, they’re also preventable. Five specification decisions do most of the work.
Match the foundation to the soil, not the catalogue
Get a geotechnical report before finalising the foundation. The report tells you what uplift resistance the soil can provide and which foundation type suits the site. A ballasted ground mount solar approach (concrete ballast resisting uplift through dead weight) suits sites where ground penetration is difficult, while ground screws generate uplift resistance by compacting and engaging the surrounding soil. The wrong choice for the soil is a failure waiting for the first big blow.
Demand wind-region-specific engineering documentation
Never accept a generic “wind resistant” claim. A racking supplier should provide engineering documentation certifying the system for your specific wind region, terrain category, and site conditions. For a deeper look at the structural and material specifications that matter most, see our guide to the best solar ground mount system for Australian conditions.
Choose materials that hold their strength for 25 years
A structural member that corrodes loses section and strength over time, which means a system that passes certification on day one can fail years later at a wind load it should have handled. Zinc Aluminium Magnesium (ZAM) coated steel offers significantly better corrosion resistance than standard galvanised steel, which matters most in the coastal and humid environments where much of Australia’s population, and many high-wind sites, are located.
Prioritise clean, repeatable connections
Every connection is a potential failure point. Systems with single-bolt rail clamps and pre-fabricated holes reduce the number of connections that can be torqued incorrectly or loosen over time. Fewer, cleaner connections mean fewer points where the load path can break.
Respect the tilt angle
Steeper tilt angles catch more wind and generate more uplift. In high-wind sites, a lower tilt angle reduces the wind load on the structure, sometimes at a small cost to annual yield. A system with adjustable tilt (the Nova Ground Mount System supports 10° to 30°) lets the installer make that trade-off deliberately rather than being locked into a fixed angle that fights the site’s wind.
Nova’s field notes: the cheapest racking is the most expensive mistake in a high-wind zone
We’ve seen the aftermath of wind failures on systems that were quoted to win on price. The saving on the racking was a few hundred dollars per array. The cost of the failure, replacing modules, re-engineering the foundation, the insurance dispute, the reputational hit with the client, ran into tens of thousands, and in some cases the installer wore it because the original system was never certified for the site’s wind region.
In a Region A site with sheltered terrain, the margin for error is generous. In Region B, C, or D, or on an exposed ridge in any region, it isn’t. If you’re quoting a high-wind site, the racking is the last place to cut cost. Specify the system that’s certified for the site, document it, and keep the paperwork. It’s the cheapest insurance you’ll ever buy.

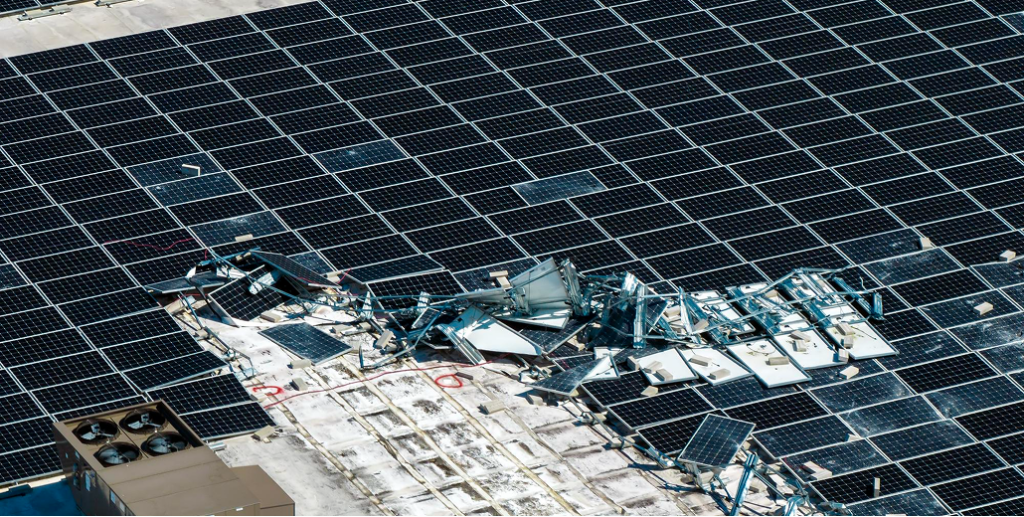

The true cost of getting it wrong
A wind failure isn’t just the cost of replacement hardware. It’s the re-engineering, the re-installation, the downtime while the system isn’t generating, the insurance excess or dispute, and the damage to the installer’s reputation. For a commercial client, it can also mean a liability claim if the failure caused damage beyond the array itself. When you weigh the small upfront saving of an under-specified system against the full cost of a failure, the maths is never close. For a full breakdown of ground mount project economics, see our guide to ground mount solar cost for installers.
Build wind-resilient ground mount projects with Nova
At Nova, we’ve spent more than 15 years designing solar mounting systems that hold up in real Australian conditions. The Nova Ground Mount System is engineered around the load path, from the module clamp to the foundation, with a rear brace support designed to transfer wind uplift and overturning loads, single-bolt rail clamps for clean repeatable connections, and pre-fabricated holes for precise on-site geometry. It supports both ground screw and concrete ballast foundations so the foundation can be matched to the site, comes in Zinc Aluminium Magnesium coated steel for corrosion resistance that lasts, and offers tilt from 10° to 30° to manage wind load. It’s backed by a 25-year warranty and supported by a technical team that provides the engineering documentation your project needs.
Whether you’re quoting a Region A rural array or a cyclonic Region D commercial project, speak to the Nova technical team for wind-region-specific engineering support, or explore the NOVA Ground Mount System specifications in detail.
Frequently asked questions
What is the most common cause of ground mount solar wind failure?
Under-specified foundations. When wind uplift exceeds the holding capacity of the foundation, the posts heave out of the ground and the whole row loses its structural geometry. This is why matching the foundation to the site’s soil and wind load, verified by a geotechnical report and pull-out testing, is the single most important step in preventing wind failure.
Can ballasted ground mount solar systems survive high winds?
Yes, when engineered correctly. Ballasted ground mount solar systems resist wind uplift and overturning through the dead weight of concrete ballast rather than ground penetration. They suit sites where driving piles or screws is difficult, such as rocky ground or capped landfill. The key is that the ballast mass must be calculated for the site’s specific wind load, an under-ballasted system can slide or overturn just as a poorly anchored one can pull out.
Do I need special certification for a ground mount in a cyclonic region?
Yes. Regions C and D under AS/NZS 1170.2 require site-specific engineering certification. A generic Region A or B layout drawing is not valid in cyclone territory and cannot be submitted to a council there. In most states the engineering calculations must be signed by a registered engineer. Always confirm your racking supplier can provide wind-region-specific documentation before quoting a cyclonic-zone project.
Does a lower tilt angle help in high wind?
Generally yes. A steeper tilt angle presents more surface to the wind and generates more uplift, while a lower tilt angle reduces the wind load on the structure. In high-wind sites, reducing the tilt angle can lower the structural demand, sometimes at a small cost to annual energy yield. A ground mount system with adjustable tilt lets the installer balance yield against wind load for each specific site.
How does Nova design against wind failure?
The Nova Ground Mount System is engineered around the load path. The rear brace support transfers wind uplift and overturning loads into the foundations, single-bolt rail clamps provide clean and repeatable connections, both ground screw and concrete ballast foundations are available so the foundation can be matched to the site, ZAM-coated steel maintains structural strength over the system life, and customisable 10° to 30° tilt lets installers manage wind load per site. Nova’s technical team provides the wind-region-specific engineering documentation each project requires.
