Ground mounted solar panels are exactly what they sound like, photovoltaic panels installed on a free-standing structure on the ground rather than attached to a roof. They’re the answer for properties where the roof isn’t suitable, where there’s land available, or where the project is too big to fit on a building.

For European properties with the right conditions, ground mount systems often outperform rooftop systems. Panels can be tilted to the optimum angle for the latitude, oriented true south regardless of building shape, and serviced from the ground without anyone climbing onto a roof. The trade-off is a higher upfront cost because you’re paying for the structure as well as the solar hardware, and in much of Europe, you’re also paying to engineer for snow loads and frost depth.

This guide covers what ground mount systems are, when they make sense, the main configurations available across Europe, and what installers and property owners need to weigh up before committing to one.

Key takeaway

• Ground mounted solar panels sit on a free-standing structure on the ground, ideal for properties with available land or unsuitable roofs.
• They typically deliver higher energy yield than rooftop systems because tilt and orientation can be optimised for the site.
• Two main foundation types: ballasted (concrete footings) and ground screws. Soil conditions, frost depth, and project scale dictate which one fits.
• Fixed-tilt systems suit residential and commercial European sites; tracking systems are usually reserved for large utility-scale projects.
• The biggest considerations are land area, soil type, wind region, snow load, frost depth, and budget. Country-specific incentive programmes can significantly improve the financial case.

What is a ground mounted solar panel system?

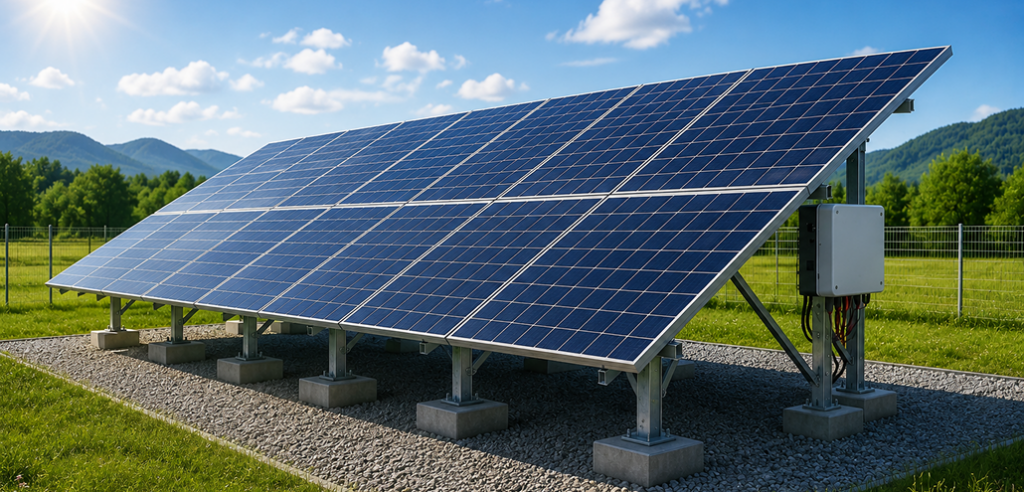

A ground mounted solar panel system is a free-standing array installed on the ground using a structural mounting frame, foundations, and a tilted rail system that holds the panels at an optimised angle. The whole assembly sits on its own structure rather than relying on an existing building.

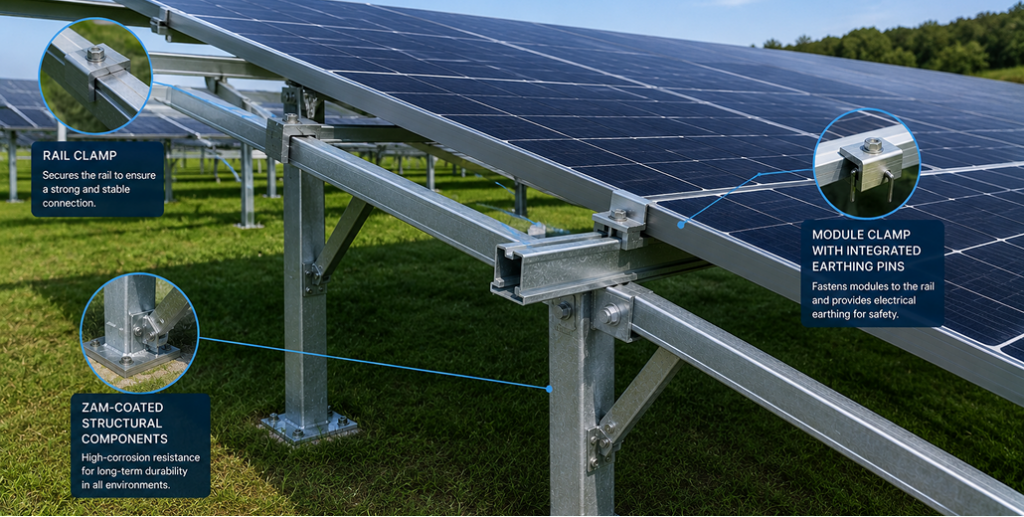

The basic components are consistent across most designs:

• Foundations: concrete ballast footings or ground screws, depending on soil, project size, and local frost depth requirements
• Upright supports: vertical posts that carry the load and set the height of the array
• Rear brace supports: angled struts that anchor the structure against wind and snow loads
• Rails: horizontal members the panels clamp onto
• Module clamps: the fasteners that secure each panel to the rails

A residential ground mount system might cover 20–40 square metres and produce 5–10 kW. A commercial array can cover several hectares and reach megawatt scale. The engineering principles are the same; only the size, complexity, and structural loading change.

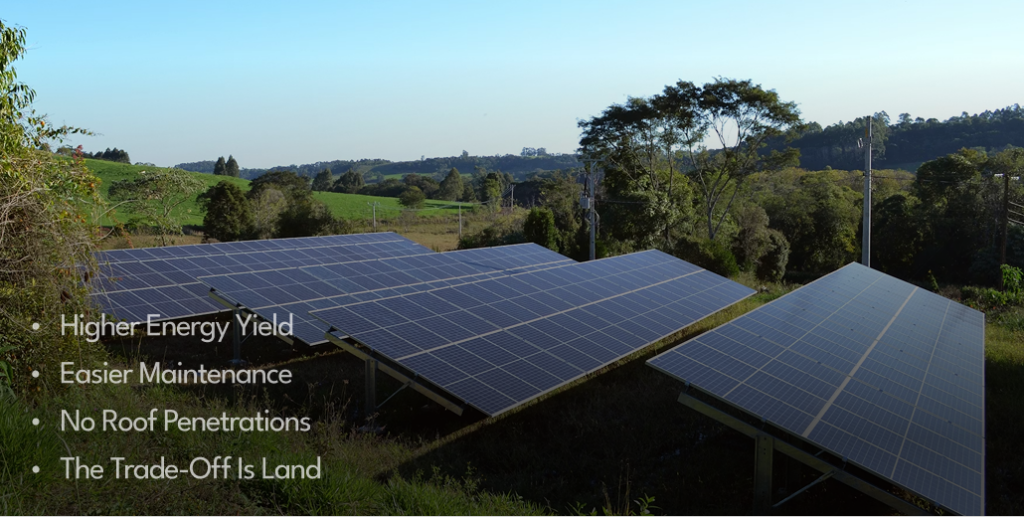

Why ground mount systems often outperform rooftop solar

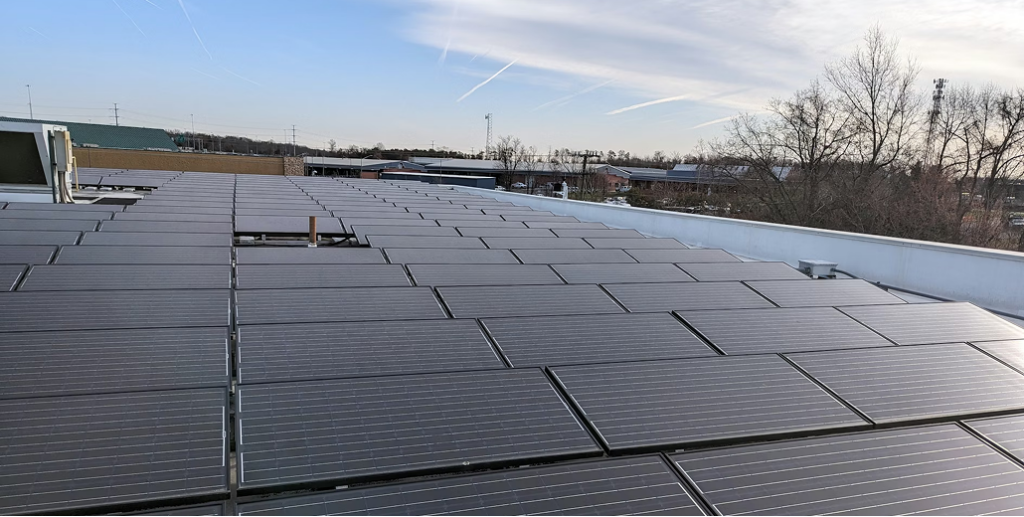

The main reason ground mount systems exist is that they remove the constraints a roof imposes. Rooftop installs are limited by the roof’s pitch, orientation, structural capacity, and shading. A ground mount has none of those constraints.

That translates into three real-world advantages:

Higher energy yield. Panels can be tilted to the optimum angle for the latitude, typically 30–40° for most of central and southern Europe and 35–45° for northern Europe and the UK, and oriented true south for maximum sun exposure. A south-facing ground mount at the right tilt can produce 10–20% more energy per panel than the same panels on a poorly oriented roof, with the upper end of that range applying in higher-latitude markets where roof orientation matters more.

Easier maintenance. Cleaning, inspection, and panel replacement happen at ground level. No working at heights, no roof safety harnesses, no scaffolding for large arrays. Snow clearing in northern Europe is also dramatically easier on a ground array than on a rooftop. Over a 25-year system life, the maintenance cost difference adds up.

No roof penetrations. The roof stays untouched. For property owners worried about leaks, voiding tile or membrane warranties, or working with a roof that’s near end-of-life, that’s a meaningful advantage.

The trade-off is land. Ground mount systems need clear, level (or near-level), unshaded ground that won’t be needed for anything else for the next 25 years. For most urban European properties that’s a barrier. For rural properties, agricultural land, and large commercial sites with available open ground, it isn’t.

When ground mount solar panels are the right choice

There are five common scenarios where ground mount is the better option than rooftop or carport solar.

The roof can’t take a solar array

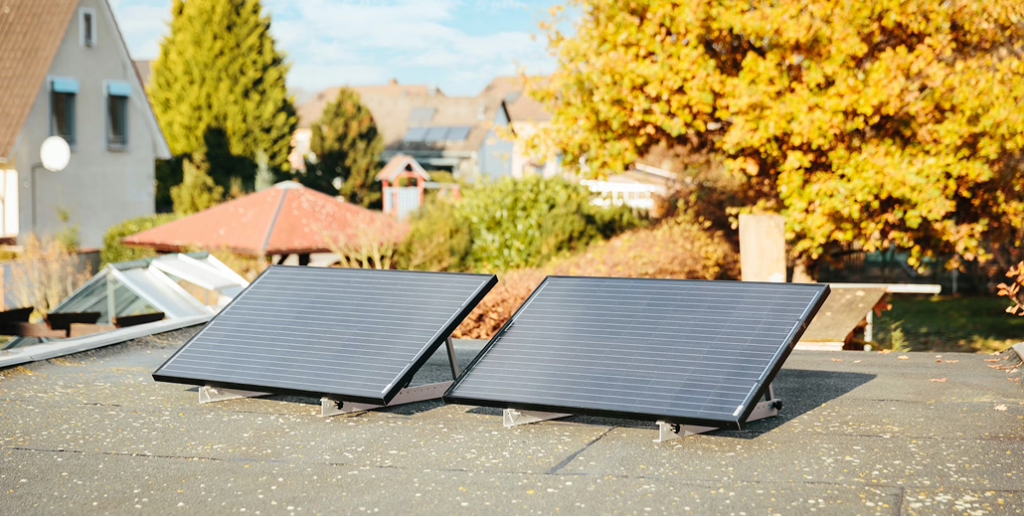

Some roofs aren’t suitable for solar. Old terracotta tile roofs, slate roofs nearing replacement, asbestos cement roofs (still common on older European agricultural and industrial buildings), heritage-listed properties, and roofs with too much shading from trees or other buildings are all reasons to look at ground mount instead.

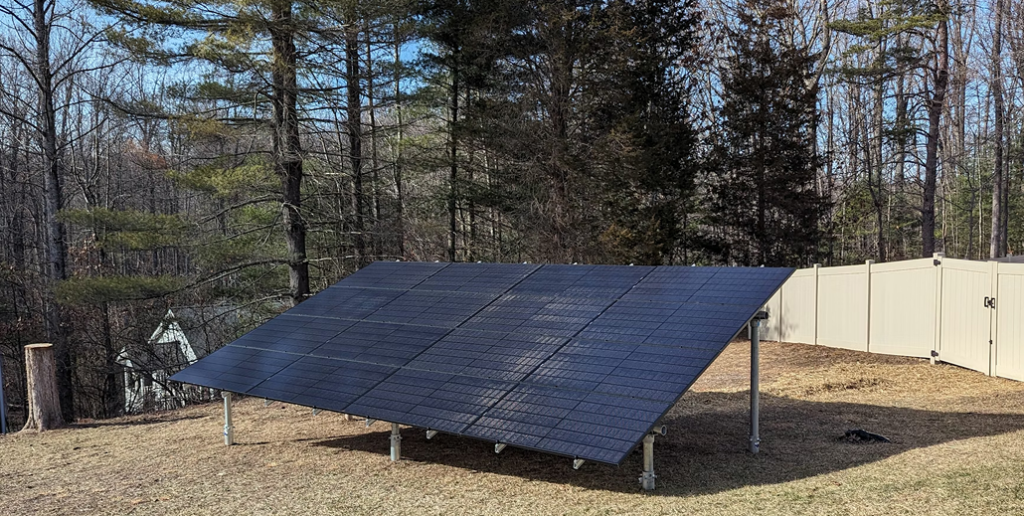

The property has available land

Rural properties, farms, agricultural sites, and large commercial developments often have significantly more usable ground area than roof area. A 100 kW commercial system might need 600–800 square metres of ground area, roughly twice the available rooftop on most light-industrial buildings.

The project is too big for a roof

Once a project exceeds roughly 100 kW, fitting it on a roof becomes difficult. Commercial and utility-scale projects from 250 kW into the megawatt range are almost always solar power ground mounted because no commercial roof can accommodate them. This is increasingly common across Europe as agrivoltaic and large-scale rural solar projects expand under EU renewable energy directives.

The owner wants maximum energy yield

For energy-intensive properties (agricultural operations with cold storage, manufacturing sites, data centres), the production gain from optimal orientation and tilt makes the higher upfront cost pay back faster. The yield uplift is particularly valuable in higher-latitude markets where rooftop performance suffers more.

The site is in a high-wind, high-snow, or exposed zone

Ground mount systems engineered to Eurocode specifications for high-wind and high-snow regions can be more resilient than rooftop arrays in exposed locations because the engineer designs the structure from the ground up for the load. We’ll cover this in more detail in our forthcoming guide on ground mount solar system failures in high-wind zones.

The two foundation types: ballasted vs ground screws

Foundation choice is the single most important decision after picking the right system. It dictates install time, cost, and what kinds of soil and climate the project can work in.

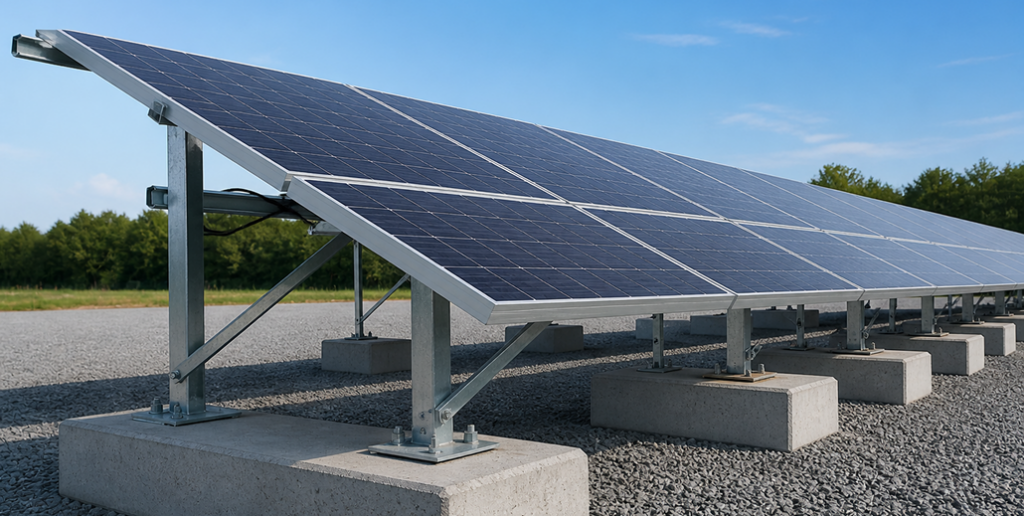

Ballasted (concrete footing) foundations

Ballasted systems use poured concrete footings that sit either on or just below ground level. The structure bolts into the concrete. They’re the traditional approach and work in almost any soil type because the load is spread across a large footprint.

Best for: rocky ground, sites with shallow bedrock, mixed or unknown soil conditions, very large arrays where economies of scale make concrete viable, southern European sites where frost depth isn’t a concern.

Trade-offs: longer install time, more excavation, higher labour cost, and a permanent footprint that’s expensive to remove.

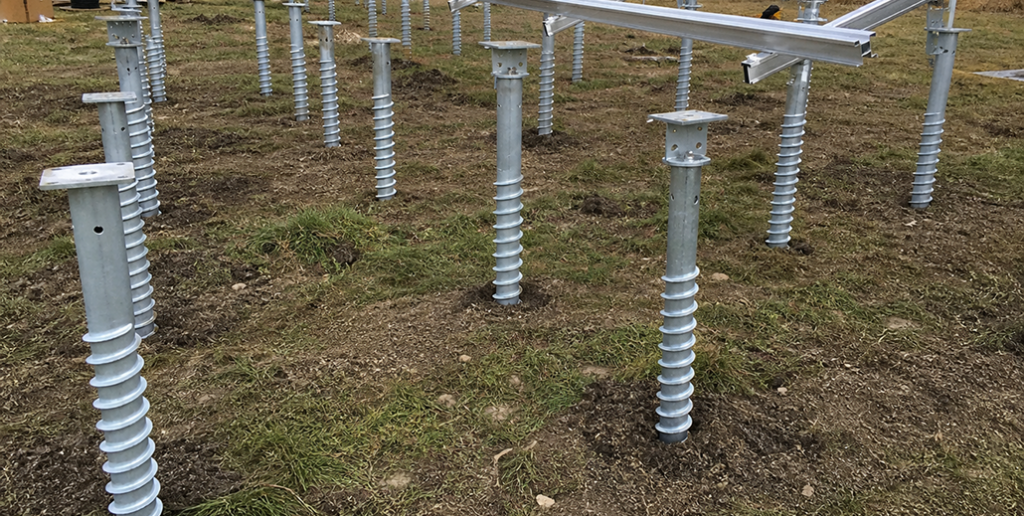

Ground screw foundations

Ground screws are large helical steel anchors driven directly into the soil. They eliminate concrete entirely, which is why they’re widely used across Germany, the Netherlands, Scandinavia, and increasingly across Eastern Europe.

Best for: stable soils (clay, compacted earth, sandy loam), commercial-scale projects where install speed matters, sites where minimal ground disturbance is preferred (productive farmland, environmentally sensitive areas), and northern European projects where frost-line installation is essential.

Trade-offs: unsuitable for rocky ground or very loose soil, requires a soil report before quoting, specialised installation equipment, and screws must reach below the local frost line.

The Nova Ground Mount System supports both foundation types as standard. For European installers, that flexibility is essential, the same product can quote across markets with very different soil and climate conditions.

Nova’s field notes: never quote a ground screw foundation without a soil report

In our experience, the single most common reason a ground mount project goes sideways isn’t materials or labour. It’s a soil surprise. A site that looked perfect on a satellite image turns out to have shallow bedrock, or a rocky layer 600 mm down, or unexpectedly high water table. Suddenly ground screws aren’t viable, the quote was wrong, and the project needs a different foundation system.

This is especially common across Europe where geology varies enormously even within a single country. Get the soil report before you finalise the quote. On commercial projects, build the cost of the geotechnical survey into the proposal as a line item if needed. It’s the cheapest insurance you can buy on a ground mount project.

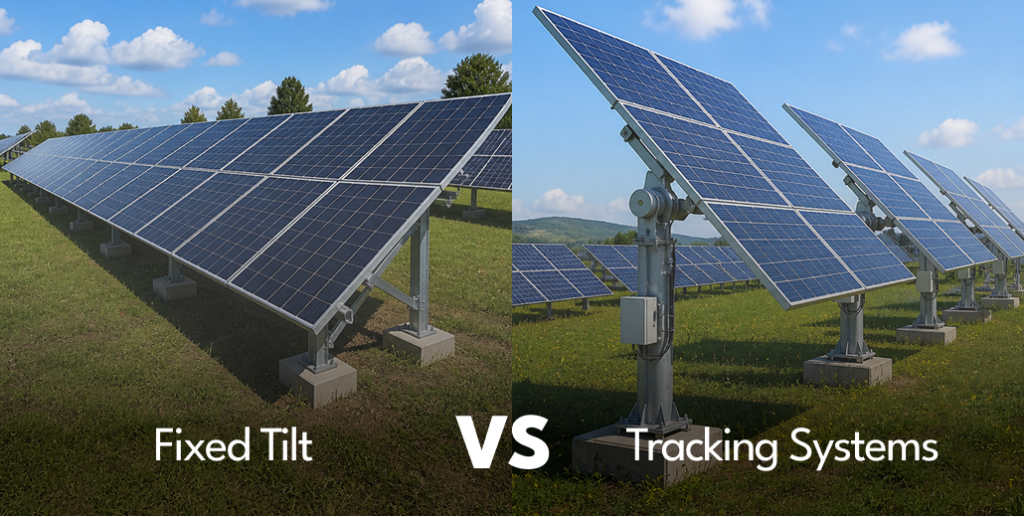

Fixed tilt vs tracking systems

Beyond foundation type, the second big choice is whether the array is fixed in place or moves to follow the sun. For 95% of European projects, fixed tilt is the right answer. Here’s why.

Feature	Fixed tilt	Single-axis tracking	Dual-axis tracking
Energy yield uplift	Baseline	+15–25%	+25–35%
Upfront cost vs fixed	Baseline	+25–40%	+50–80%
Moving parts	None	Motor, drive system, controllers	Motor, drive system, controllers (more axes)
Maintenance burden	Minimal	Annual service, motor replacements	Significant ongoing maintenance
Best suited to	Residential and commercial	Utility-scale (multi-MW)	Specialised research and high-value sites

Fixed tilt systems are exactly what they sound like, panels are set at one angle (typically 30–40° for central and southern Europe, 35–45° for northern Europe) and stay there. They’re simpler, cheaper, more reliable, and account for the vast majority of European ground mount installs. The Nova Ground Mount System supports adjustable tilt from 5° to 60°, which is unusually wide and lets installers optimise for any European latitude from Andalusia to Lapland.

Tracking systems rotate panels through the day to follow the sun. The yield uplift sounds attractive, but the maths usually doesn’t work outside large utility-scale projects. The added cost, the maintenance burden, and the failure points (motors, controllers, gearboxes) typically push payback well beyond what fixed tilt delivers. Trackers also struggle in high-snow regions where ice and snow buildup can disrupt the drive mechanism. For commercial and residential projects, the extra capital is almost always better spent on more fixed-tilt panels.

For a deeper comparison covering when each is worth the investment, see our guide to ground mount solar tracking systems versus fixed tilt.

Nova doesn’t manufacture tracking systems. Our Ground Mount System is a fixed-tilt design because that’s what makes financial sense for the projects our customers actually quote.

Key considerations for European sites

Six factors decide whether a ground mount system will perform over its 25-year life or become a maintenance headache. Europe has one more than AU and NZ markets because of snow loading.

1. Available land area

A rough rule of thumb: residential 5–10 kW systems need 30–60 square metres; commercial 100 kW systems need 600–800 square metres; megawatt-scale projects need a hectare or more. The land also needs to be unshaded, accessible for installation, and clear of underground services.

2. Soil and ground conditions

A geotechnical report is essential for anything beyond a small residential install. The report will identify soil type, bearing capacity, water table depth, frost depth, and any obstacles like bedrock or buried services. European soil conditions vary enormously, dense clay across much of central Europe, sandy soils across northern Germany and the Baltic states, rocky terrain in the Alps and Mediterranean coasts, and peat or alluvial soils in low-lying areas.

3. Wind region

Wind loading under Eurocode EN 1991-1-4 determines structural sizing. Most metropolitan European sites are in moderate wind zones, but coastal regions (the North Sea, Atlantic Europe), elevated sites, and exposed terrain require significantly stronger engineering. Budget an extra 15–30% for foundations and structural work in higher wind zones.

4. Snow loading

This is the factor that changes European ground mount engineering most compared to AU or NZ. Under Eurocode EN 1991-1-3, structures across most of central, northern, and eastern Europe must be engineered to handle significant snow loads. Typical characteristic snow loads range from below 0,5 kN/m² in coastal Mediterranean regions to over 4 kN/m² in alpine and northern Scandinavian zones.

Ground mount systems in high-snow regions need stronger structural members, deeper foundations, and often steeper tilt angles to shed snow. Budget an additional 15–25% on structural cost for sites with characteristic snow loads above 2 kN/m², and up to 40% more in alpine zones.

5. Frost depth

In northern and central Europe, foundations must extend below the local frost line, the depth at which ground freezing occurs. Frost depth ranges from negligible in southern Mediterranean Europe to 1,2 metres or more in parts of Scandinavia, Poland, and the Baltic states. Ground screws and concrete foundations alike must extend below this line to prevent frost heave from lifting and damaging the structure.

6. Material durability

Standard galvanised steel works in dry inland conditions but corrodes faster in humid, coastal, or salt-laden environments. Zinc Aluminium Magnesium (ZAM) coated steel offers significantly better corrosion resistance than traditional hot-dip galvanising and is the preferred choice for most European ground mount projects, particularly along the North Sea, Atlantic, and Mediterranean coasts.

Nova’s field notes: high-snow projects need a different conversation from day one

Alpine and high-latitude projects (characteristic snow load above 2 kN/m²) aren’t just “standard projects with stronger fixings”. They’re a different engineering exercise. The combined wind and snow loading calculations under Eurocode produce structural requirements that change foundation depth, beam sizing, brace specification, and clamp torque requirements. Trying to retrofit a moderate-snow quote for an alpine site is one of the fastest ways to burn margin on a ground mount project.

If the project is in a high-snow zone, get the structural engineer involved before the quote, not after. Build the engineering fee into the proposal. And be honest with the client about what zone-rated hardware costs, the gap between low-snow and alpine pricing on the same nominal system size can be 30–40%.

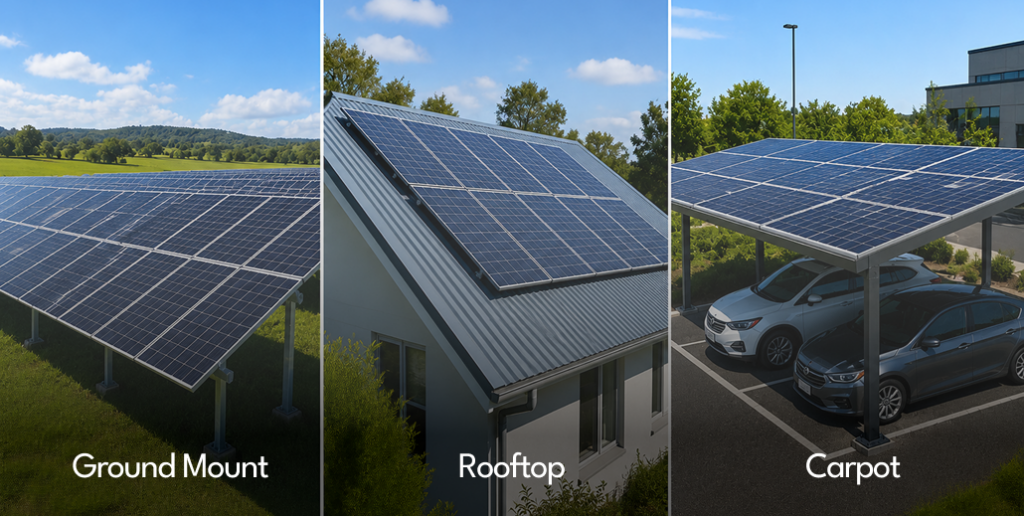

Ground mount vs rooftop vs carport: which is right for the project?

For most European properties, the choice between mounting types comes down to available space, budget, and goals.

Mounting type	Best when	Watch out for
Rooftop	Roof is suitable, space is limited, lowest upfront cost matters	Roof orientation and pitch limits performance; harder to maintain, especially in high-snow regions
Carport	Parking area is available, vehicle protection is valued, dual-use space matters	Higher cost per watt than ground mount; structural complexity
Ground mount	Land is available, maximum energy yield matters, project is large	Land use commitment for 25+ years; geotechnical and permitting requirements

For a project with both available land and parking, the decision often comes down to whether the customer values vehicle protection (carport) or pure energy yield (ground mount). In agricultural settings, dual-use ground mount (agrivoltaics) is increasingly attractive across the EU.

[Image placement: comparison illustration or photograph showing rooftop, carport, and ground mount installs side by side]

How ground mount system installation works

Ground mount installation is more involved than rooftop because the structure has to be built from scratch. The typical sequence runs:

1. Site assessment and soil report. Confirms soil type, bearing capacity, frost depth, and access.
2. Design and structural engineering. Sizing, tilt, layout, EN 1991-1-4 wind compliance, EN 1991-1-3 snow compliance.
3. Permits and approvals. Country-specific (Baugenehmigung in Germany, déclaration préalable or permis de construire in France, etc.).
4. Foundation installation. Concrete pours and curing, or ground screw installation below frost line.
5. Structure assembly. Upright supports, rear braces, rails.
6. Panel mounting. Modules clamped to rails.
7. Electrical work. DC wiring, inverter installation, grid connection.
8. Commissioning and grid operator sign-off.

A residential ground mount install typically takes 2–4 weeks end-to-end across most European markets. Commercial projects run 6–16 weeks depending on scale and permitting timelines. For a deeper look at the racking and structural installation specifically, see our guide to ground mount solar racking systems.

What ground mount solar panels cost in Europe

Solar panel ground mount pricing varies significantly based on size, foundation type, soil, wind region, and snow load. As a rough guide for European projects in 2026, residential ground mount systems run around EUR €0,90 to €1,40 per watt installed in Germany, with similar ranges across most western European markets. Commercial systems at scale can come in below €0,80 per watt. That’s higher than rooftop solar but lower than solar carports, broadly comparable across the major European markets with country-specific variation driven by labour rates, VAT, and incentive frameworks.

A worked example: a 6.6 kW residential ground mount system installed for around €8.500 (mid-range, Germany) can be financed through a KfW renewable energy loan at favourable rates. With a typical German electricity rate of €0,32/kWh and self-consumption around 50%, that system would pay back in roughly 7–9 years before factoring in the production uplift from optimal tilt and orientation.

European incentive programmes vary significantly by country. Germany’s EEG framework guarantees feed-in tariffs for surplus generation. France offers self-consumption premiums and reduced VAT on residential PV. Italy’s Superbonus has historically provided enhanced depreciation, though programme structures change. Spain offers regional rebates and self-consumption tax reductions. The Netherlands has Salderingsregeling (net metering) and SDE++ subsidies. Eastern European markets often access EU-funded commercial and industrial scale programmes.

For a complete breakdown including foundations, country-specific incentives, and worked commercial examples, see our guide to ground mount solar cost for installers. Larger commercial projects have their own pricing dynamics, which we cover in our overview of ground mounted pv system installations for commercial projects.

Frequently asked questions (FAQ)

Q: What incentives are available for ground mounted solar panels in Europe?

A: Incentives vary significantly by country. Germany offers KfW low-interest loans and EEG feed-in tariffs. France runs MaPrimeRénov’ for residential and self-consumption premiums for commercial. Italy has Superbonus and ecobonus programmes (subject to frequent change). Spain offers regional rebates that vary by Comunidad Autónoma. The Netherlands runs Salderingsregeling and SDE++. Most EU member states also offer reduced or zero VAT on residential PV under recent VAT directive amendments. Confirm current eligibility with a local installer or government renewable energy office at quoting stage.

Q: Are ground mounted PV panels more reliable than rooftop systems in Europe?

A: They can be, but it depends on engineering and materials. A well-designed ground mount system using ZAM-coated steel or marine-grade aluminium, properly engineered to Eurocode wind and snow standards for the local region, will typically outlast a rooftop system because there are no roof penetrations to fail. A poorly designed one in a high-snow or high-wind zone can fail catastrophically. The engineering matters more than the mounting type.

Q: How much land do I need for solar power ground mounted at home?

A: A 5 kW residential system needs roughly 30–40 square metres of clear, unshaded, south-facing ground. A 10 kW system needs 60–80 square metres. The land also needs to be flat or near-flat, accessible for installation equipment, and not over any underground services.

Q: Can I install ground mount solar panels on sloped land?

A: Yes, within limits. Most fixed-tilt ground mount systems can accommodate slopes up to about 10°. Steeper slopes require either custom engineering or terracing, which adds significant cost. For very steep sites (common across alpine and Mediterranean hill country), rooftop solar or a custom-engineered structure is usually better value.

Q: Do ground mount systems need planning permission across Europe?

A: Almost always, yes, but the process varies enormously. Germany requires Baugenehmigung in most Bundesländer, with exemptions for some small residential systems. France requires déclaration préalable for smaller systems and permis de construire for larger ones. Italy has regional permitting frameworks that vary by region. Most other EU countries have their own equivalent processes. Always check local requirements before quoting, and budget timeline contingency for protected zones, agricultural land, and historic areas.
