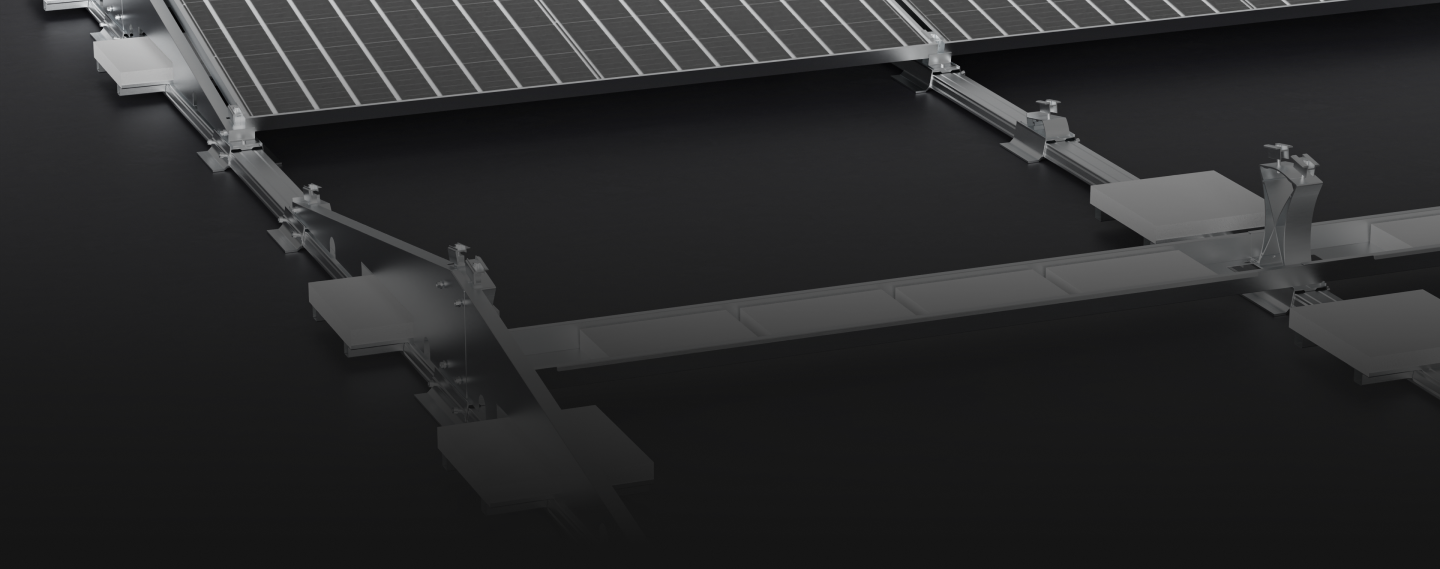

NOVA Ballast System Type-M
Installing solar made easy – The NOVA Ballast System Type-M is a modularised solar ballast system designed to offer greater flexibility for small-scale commercial rooftop solar installations.
Built For Maximizing Solar Energy Capture
Maximising solar potential on small or obstructed roofs can be tricky. Nova’s ballast system Type-M eliminated this challenge. Its simple, modular design lets you easily put single panels anywhere on the roof. It gives you the freedom to place panels where they get the most sunlight, boosting your system’s sunlight capture.
25 Year Warranty
Up-to 30% faster Installation
Landscape
1.
front leg
The front and rear leg design is engineered for optimal strength and cost-effectiveness. Ultilizing triangular geometry to maximize structural integrity without compromising efficiency.
2.
REAR LEG
The rear leg component offers versatility by seamlessly adapting to both north-south and east-west configurations. Comes preassembled.
3.
RAILING SYSTEM
Our compact modular railing system effortlessly slides into the front and rear legs, making it incredibly easy to handle and assemble.
4.
SIDE WIND DEFLECTOR
The short-side wind deflector conveniently accommodates cable and ballast outlets, greatly simplifying cable and ballast installation management.
5.
REAR WIND DEFLECTOR
The wind deflector can be easily attached by securing 2 x M8 bolts into the prethreaded holes on the back of the rear leg.
6.
BALLAST TRAY
Enhance stability with our versatile ballast trays, designed for compatibility with various concrete types. The unique structure ensures increased stability across the entire array.
Suitable For All Weathers
The Ballast System Type-M is engineered to endure severe weather such as heavy snow, ice, and high winds, ensuring full compliance with building regulations.
Plug And Play
With adjustability built in for every direction, NOVA’s standard tile solutions are compatible with all standard tile roofs and ready for installing solar at any roofing scenarios
Compact Storage Design
The ballast system Type-M features a compact and space-efficient design, optimising storage and transport while simplifying logistics without compromising power.
Get Free Expert Advice From Our Technical Support Team.
Start Installing Solar Panels More Efficiently Today.
NOVA Ballast System Type M
The NOVA Ballast System TYPE M is a versatile modular system designed to address a diverse array of flat roof applications, With its streamlined design and minimal components, our system offers an extensive range of possibilities, providing flexibility and adaptability to meet various project needs. The system is capable of accommodating large PV modules. Furthermore, our commitment to consistency and compatibility is evident as the same components are utilised across both south-facing and east/west-facing systems, ensuring seamless integration and maximum efficiency for your solar projects.
Specifications
East West Confirguration
East West Confirgu-ration
North South Configu-ration
01.
Module length
1550 – 2190mm
1550 – 2190mm
02.
Module width
980 – 1150mm
980 – 1150mm
03.
Module Inclination
10˚ – 12˚
10˚ – 12˚
04.
Panel thickness
30-40mm
30-40mm
05.
Passage between modules
100 – 200mm
451 – 634mm
06.
Integrated clamp earthing
07.
Integrated equipotential bonding
08.
Fixing Method
Ballast
Ballast
09.
Material
6005-T5 Aluminium
6005-T5 Aluminium
10.
Wind Tunnel Tested
11.
25 Year Warranty
System Components
Watch The Panel Installation Tutorial
See The Solar Panel Mounting System In Action
Get Free Expert Advice From Our Technical Support Team. Start Installing Solar Panels More Efficiently Today.
downloads
More at Resource centre
FAQ's FAQs About The Ballast Solar System Type-M
How would you choose between NOVA Ballast System Type-M and Type C?
Type-M is made for maximum flexibility. Installing smaller-scale systems and single panels is easier with Type-M. Type-C is specially made for larger-scale projects as it uses less material in bigger arrays. Type-C is the more cost-effective solution for large-scale projects.
What is the difference between the north-south configuration and the east-west configuration?
North-South Configuration produces more energy per panel as it maximises exposure to direct sunlight while the east-west configuration maximises solar output on limited roof space and generates energy more consistently throughout the day. If you need help with what would work best for your project, contact our technical support for more help.
What is the maximum ballast for this system?
Our engineering certificates have indicated how much ballast must be placed and at which locations. Please contact us for more details.
